Description

Description

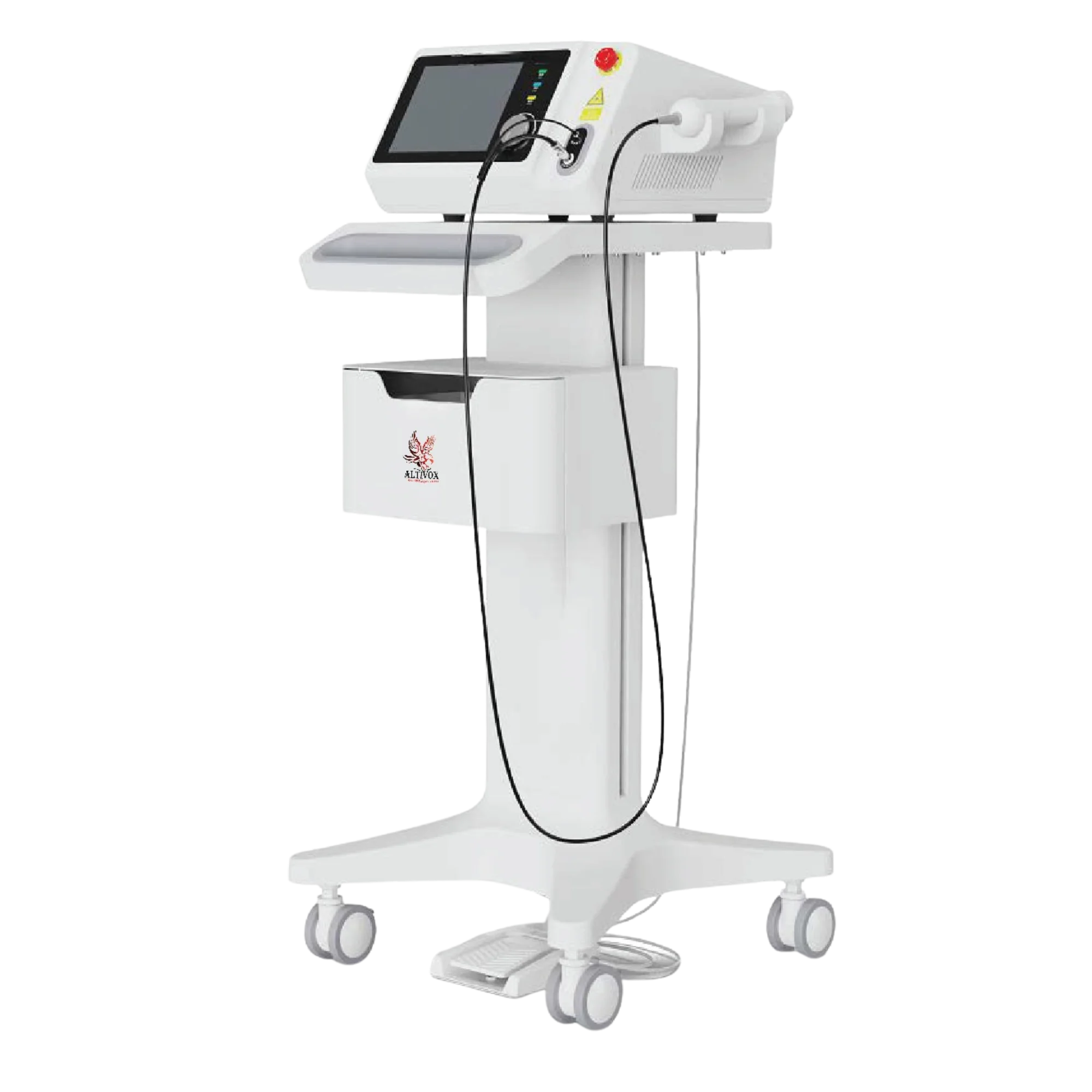

The AV-SCJG-II is a high-power professional laser therapy device designed for deep tissue treatment, pain relief, rehabilitation, and advanced physiotherapy applications. Equipped with multiple treatment heads, intelligent and expert operation modes, and a capacitive touch interface, it provides precise and customizable laser therapy. Ideal for hospitals, rehabilitation centers, and physiotherapy clinics, the device ensures safe, effective, and flexible therapeutic outcomes.

Technical Specifications

• Model: AV-SCJG-II
• Rated Voltage: AC 220V
• Rated Frequency: 50Hz
• Rated Input Power: 500VA
• Rated Power: 500W
• Device Size: 520 × 480 × 1120 mm
• Placement: Desktop & Trolley
• Screen Size: 8 inches
• Operation Mode: Capacitive touch, one-key shuttle
• Weight: 25 kg
• Working Mode: Continuous / Pulse
• Treatment Time: 1s – 4000 min
• Maximum Output Power: 15W
• Treatment Wavelength: 808 nm & 980 nm (650 nm indication light)
• Treatment Area: 1 cm² – 200 cm²
• Therapeutic Dosage: 20J/cm² – 600J/cm²
• Treatment Heads: 4 Types
• Treatment Program: Intelligent Mode, Expert Mode (10 parts, 75 protocols)

Advantages

• High Power Output: Maximum 15W output for deep tissue penetration.
• Dual Wavelength Therapy: 808 nm and 980 nm treatment wavelengths; 650 nm indication light.
• Customizable Treatment Area: 1 cm² to 200 cm² to target specific regions efficiently.
• Therapeutic Dosage Control: Adjustable from 20J/cm² to 600J/cm² for precise treatment.
• Multiple Treatment Heads: 4 types for versatile therapy applications.
• Operation Modes: Continuous and pulse modes for various treatment needs.
• Intelligent Mode: Automated treatment for standard therapy
• Expert Mode: 10 body parts with 75 programmable protocols for professional use
• User-Friendly Interface: 8-inch screen with capacitive touch and one-key shuttle control.
• Safety Prompt Functions: Emergency stop, chain warning, and foot pedal warning for safe operation.
• Flexible Placement: Can be used on a desktop or trolley, weighing only 25 kg for easy mobility.

Applications

1. Deep tissue pain management
2. Muscle and joint rehabilitation
3. Post-surgical recovery
4. Sports injuries and physiotherapy
5. Chronic pain relief (back, neck, shoulders, knees)
6. Targeted tissue repair and inflammation reduction
