Passive and Active Upper Limb Exerciser AV-ZBD-ID

Description

Description

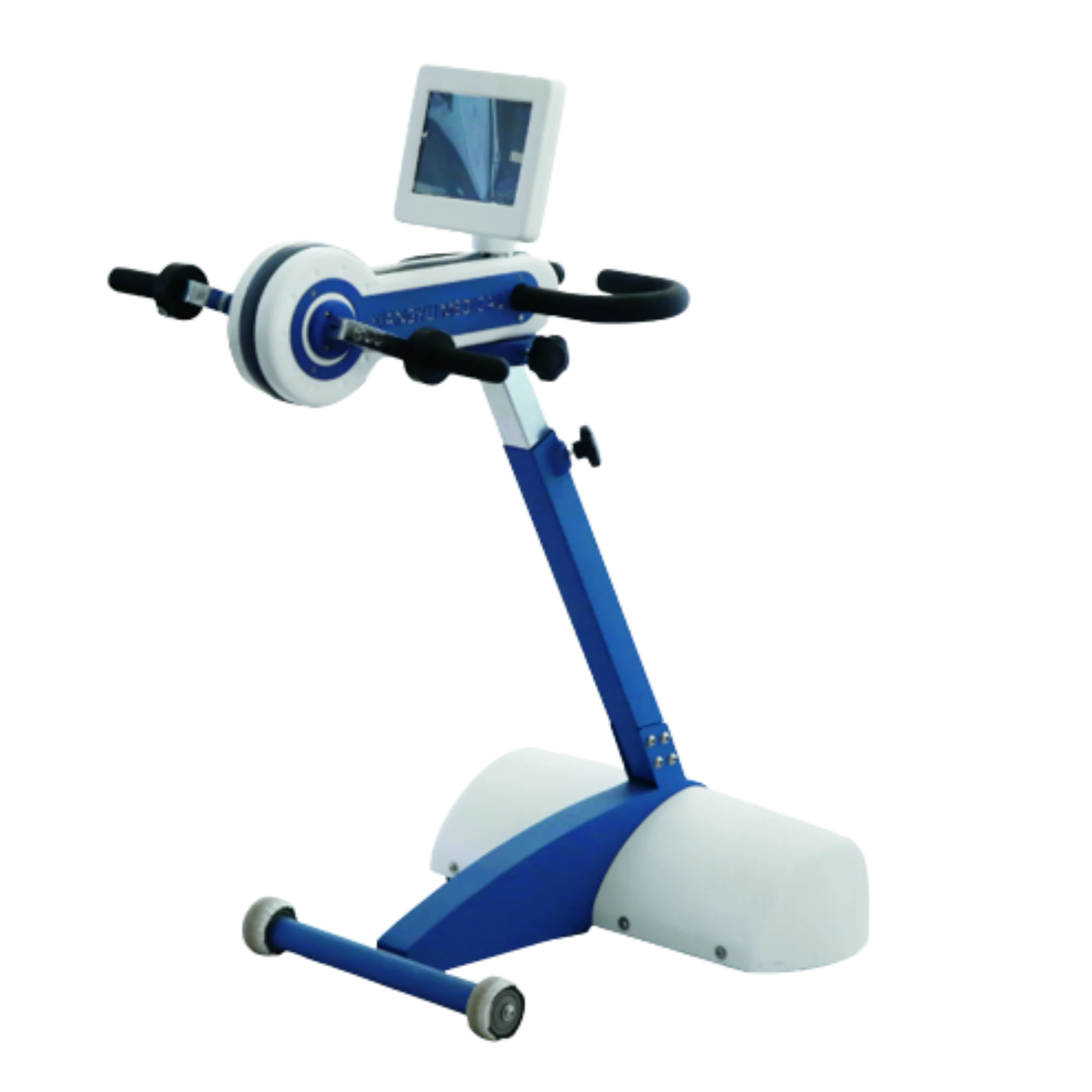

The AV-ZBD-ID is an advanced upper limb rehabilitation device designed for both passive and active exercise. Equipped with a rotatable 8-inch touch screen and ergonomic handles, it allows precise training for upper limb mobility, strength, and coordination. The device tracks detailed training data, including torque, speed, spasm events, and muscle balance, making it ideal for hospitals, physiotherapy centers, and rehabilitation clinics.

Technical Specifications

Model: AV-ZBD-ID

Power Supply: AC 220V, 50Hz

Output Power: 100 VA

Device Size: 700 × 650 × 1200 mm

Display: 8-inch touch screen, rotatable 180°

Upper Limb Training: Horizontal: 0–180°, Lifting: 0–100 mm

Active Mode: Torque: 1–15 Nm, 15 adjustable levels, displays speed, training time, resistance

Passive Mode: Training time: 1–60 min, speed: 5–55 rpm, direction adjustable, motor torque low/medium/high, spasm function adjustable

Spasm Function Sensitivity: low/medium/high, spasm time: 3–15 s, total spasm count displayed

Turnaround Time: 0–3 min (direction change during training)

Training Results: Active/passive time, left/right balance ratio, spasm count, calories, distance, muscle symmetry info

Safety: Emergency stop button

Support: Handheld handle and forearm support

Advantages

• Dual Training Modes:
  Active Mode: Adjustable torque (1–15 Nm, 15 levels), displays speed, training time, resistance, and training results.
  Passive Mode: Training time 1–60 min, speed 5–55 rpm, direction adjustable, motor torque low/medium/high, and spasm function with adjustable sensitivity and duration.
• Detailed Feedback: Training results include active time, passive time, left/right balance ratio, spasm count, calories, distance, and muscle strength symmetry.
• Upper Limb Mobility: Horizontal rotation 0–180°, lifting 0–100 mm for comprehensive upper limb movement.
• Ergonomic Design: Handheld handle and forearm support for comfortable training.
• Adjustable Spasm Function: Low, medium, high sensitivity with adjustable spasm duration (3–15s).
• Turnable Display: 8-inch touch screen rotates 180° for user-friendly operation.
• Safety Features: Emergency stop button and adjustable turnaround time (0–3 min) for safe rehabilitation.

Applications

1. Upper limb rehabilitation after stroke, injury, or surgery
2. Muscle strength and coordination training
3. Spasticity management and neuromuscular therapy
4. Physiotherapy and rehabilitation centers
5. Post-surgical mobility recovery
