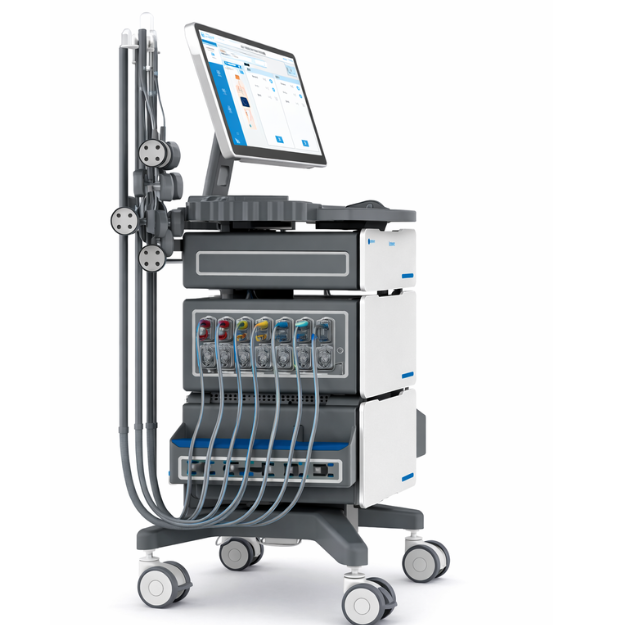

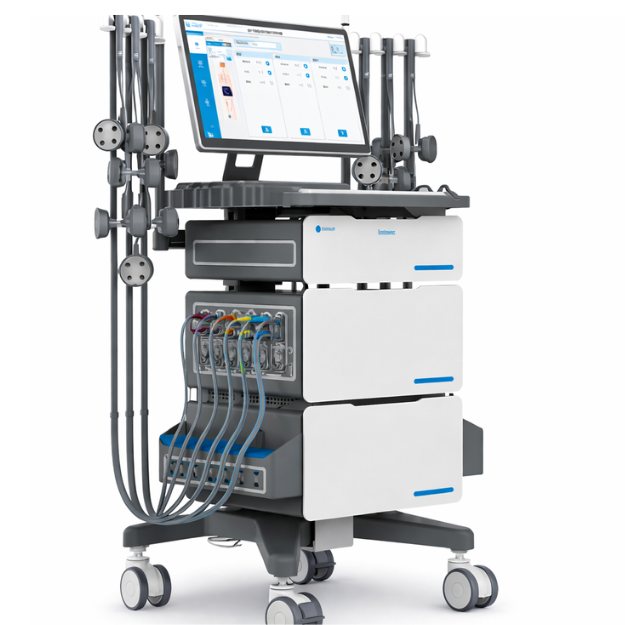

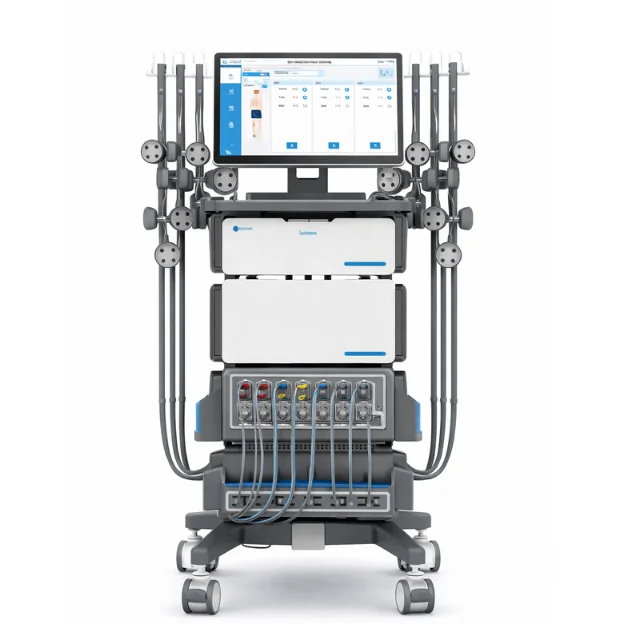

Multifunctional Electrotherapy System AV-K-QDL-IV

Description

Type: Multifunctional Electrotherapy System
Model: AV-K-QDL-IV

Overview

This advanced Electrical Muscle Stimulator Therapy Device is a professional-grade physiotherapy system designed for clinics, rehabilitation centers, and hospitals. It integrates five major physical therapy modalities into one powerful unit, providing comprehensive treatment for pain relief, muscle stimulation, and neuromuscular rehabilitation.

Integrated Therapy Modes:

• Spasm Muscle Stimulation
• TENS (Transcutaneous Electrical Nerve Stimulation)
• Muscle Stimulator (NMES)
• Medium Frequency Electrotherapy
• Interferential Current Therapy

---

Specifications

Category	Specification Details
Therapy Modalities	Spasm Muscle Stimulation, TENS, Muscle Stimulator (NMES), Medium Frequency Electrotherapy, Interferential Current Therapy
Display Screen	21-inch LCD Touch Screen
Output Channels	12-channel Medium Frequency, 12-channel TENS, 12-channel Spasm Muscle Stimulation, 12-channel Interferential Current, 12-channel Neuromuscular Electrical Stimulation (independently adjustable)
Spasm Muscle Stimulation – Frequency	0.5Hz – 1Hz (Adjustable)
Spasm Muscle Stimulation – Pulse Width	0.1ms – 0.5ms, step 0.1ms
TENS Operating Frequency	2Hz – 160Hz, step 1Hz
TENS Pulse Width	60μs – 520μs, step 10μs
Muscle Stimulator (Complete Denervation)	Working Frequency: 500Hz; Modulation Frequency: 0.5Hz – 5Hz (step 0.5Hz); Pulse Width: 1ms; Modulating Wave Width: 10ms; Pulse Period: 2ms
Muscle Stimulator (Partial Denervation)	Working Frequency: 0.5Hz – 5Hz (step 0.5Hz); Pulse Width: 10ms; Pulse Period: 200ms – 2000ms
Medium Frequency Electrotherapy – Operating Frequency	1kHz – 10kHz
Medium Frequency – Modulation Frequency	0 – 150Hz
Medium Frequency Treatment Protocols	71 Fixed Protocols
Interferential Current – Operating Frequency	4kHz
Interferential Current – Modulation Frequency	0.125Hz
Interferential Treatment Protocols	29 Fixed Protocols
Electrode Fixation Modes	Vacuum Electrodes, Silicone Electrodes
Silicone Electrode Temperature Range	38°C – 55°C
Heating Levels	6-Level Adjustable (Heating Function ON/OFF)
Thermal Function Channels	12-Channel Silicone Electrode Heating
Account Management System	Doctor Account Management (Create, Edit, Delete, Search Doctor Profiles)
Application Areas	Pain Relief, Muscle Stimulation, Rehabilitation, Sports Injury Recovery, Post-Surgical Therapy
Safety & Operation	Non-invasive, Drug-free Electrical Therapy

---

Key Advantages

All-in-One Therapy Solution

Combines five physiotherapy technologies in a single device, reducing equipment cost and saving clinic space.

Large 21-Inch Touch Screen

• User-friendly interface
• Fast program selection
• Real-time parameter adjustment
• Improved treatment accuracy

12 Independent Output Channels

• Simultaneous treatment of multiple body areas or patients
• Individual intensity and mode control for each channel

Wide Frequency & Pulse Adjustment Range

• Suitable for acute pain, chronic pain, muscle spasm, and rehabilitation
• Supports both complete and partial denervation treatments

Built-In Treatment Protocols

• 71 fixed medium-frequency therapy protocols
• 29 fixed interferential therapy protocols
• Ensures standardized and efficient clinical treatments

Heating Silicone Electrodes

• Temperature range: 38°C–55°C (6-level adjustment)
• Enhances muscle relaxation and blood circulation
• Heating function can be switched ON or OFF

Doctor Account Management System

• Create, edit, and manage multiple doctor profiles
• Allows personalized treatment settings and easy workflow management

---

🔹 Why Use This Product?

Faster Pain Relief & Muscle Recovery

Delivers deep electrical stimulation to reduce pain, relieve muscle spasms, and accelerate recovery.

Improves Clinical Efficiency

Multiple channels and preset protocols allow therapists to treat more patients in less time.

Ideal for Rehabilitation & Physiotherapy Clinics

Suitable for:

• Sports injuries
• Post-surgical rehabilitation
• Muscle weakness and paralysis
• Chronic neck, back, and joint pain

Safe, Non-Invasive, Drug-Free Therapy

Provides effective treatment without medication or surgical intervention.

Professional, Reliable & Future-Ready

Modern design, intelligent control system, and advanced therapy modes ensure long-term clinical performance.
