IFT (Interferential Therapy) AV-K-GR-F1

3,850

The IFT (Interferential Therapy) Machine – Model: AV-K-GR-F1 is a portable electrotherapy device designed for effective pain relief, muscle stimulation, and rehabilitation treatments. It features three-dimensional interferential current output, providing deeper tissue penetration for improved therapeutic results. The device comes with a touch screen digital display, making operation simple and precise for therapists. With adjustable frequencies, multiple modulation options, preset treatment protocols, and self-adhesive electrodes, the AV-K-GR-F1 ensures safe, comfortable, and efficient therapy in physiotherapy clinics, hospitals, and rehabilitation centers.

Add to Wishlist
Add to Wishlist

Description

The Interferential Therapy (IFT) Machine is an advanced electrotherapy device designed for effective pain relief, muscle stimulation, and rehabilitation therapy. It delivers three-dimensional interferential current output that penetrates deeper into tissues to stimulate nerves and muscles while reducing discomfort.

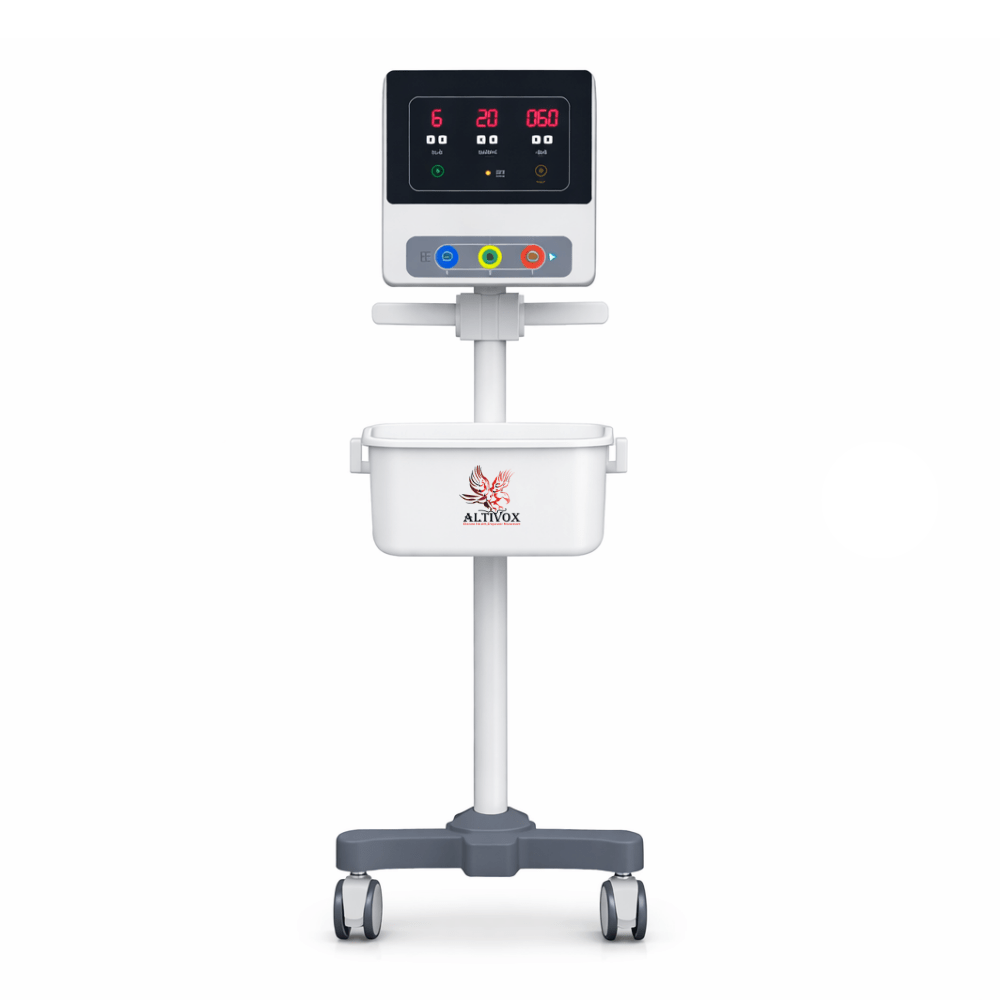

This device features a touch screen interface with digital display, making operation simple and precise for therapists. The portable desktop design allows easy use in clinics, hospitals, physiotherapy centers, and rehabilitation facilities, while an optional trolley/cart can be added for better mobility.

The device also includes pre-set treatment protocols, self-adhesive electrodes, and built-in safety protection features such as open-circuit and short-circuit protection to ensure safe and reliable operation during therapy sessions.

Key Features

  • 3D Interferential Current Output – Provides deeper tissue stimulation for effective pain relief.

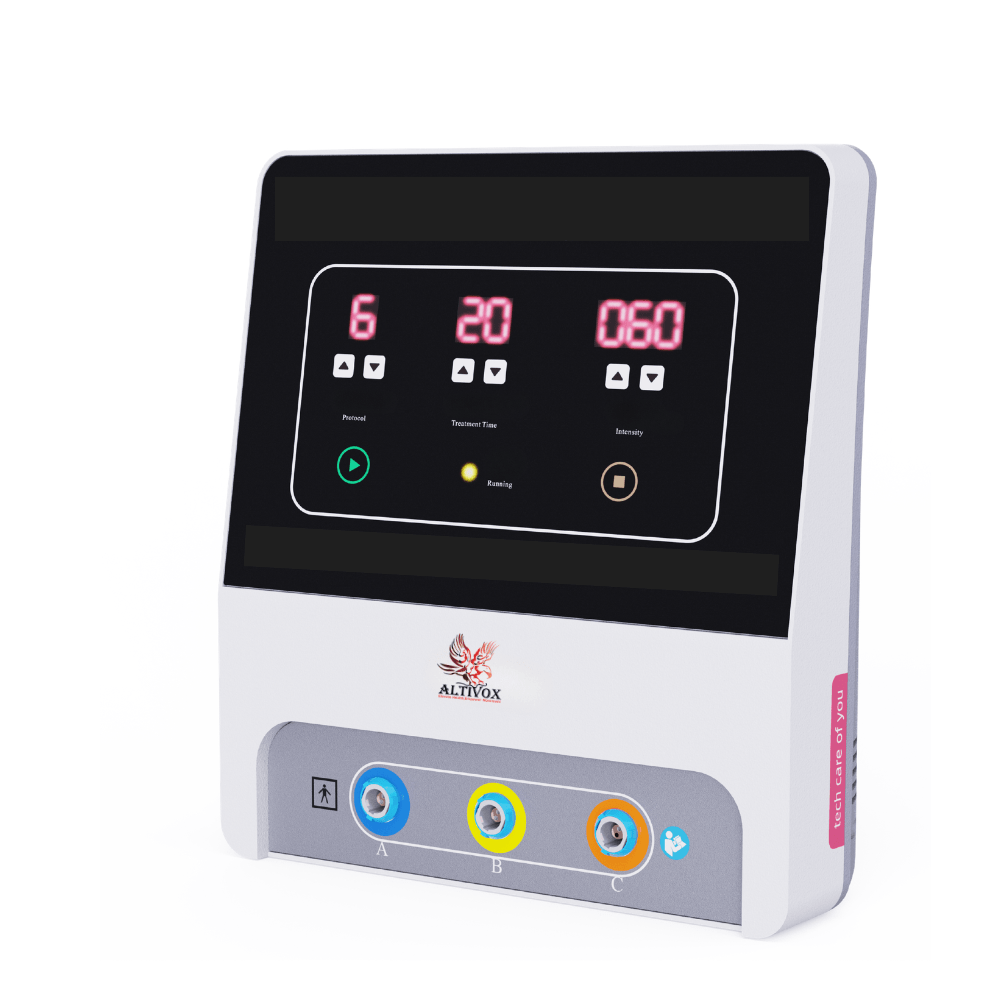

  • Touch Screen Control – Easy and user-friendly operation with digital display.
  • Portable Desktop Design – Compact and convenient for clinics and therapy centers.
  • Optional Mobile Cart – Allows flexible movement and easy equipment placement.
  • Wide Frequency Range – Adjustable beat frequency from 1Hz to 200Hz for different treatments.
  • Multiple Modulation Levels – Flexible therapy with 0%, 25%, 50%, 75%, and 100% modulation.
  • Built-in Treatment Protocols – Includes 9 or more preset programs for quick therapy selection.
  • Self-Adhesive Electrodes – Easy application and comfortable for patients.
  • Safety Protection System – Equipped with open-circuit and short-circuit protection for safe operation.
  • Adjustable Treatment Timer – Set therapy time from 1 to 99 minutes.
Specification Details
Output Channel One channel of three-dimensional interferential current output
Operation Touch screen operation, digital display
Device Type Portable desktop type, cart optional for configuration
Operating Frequency 5 kHz
Beat Frequency Range 1 Hz – 200 Hz
Maximum Output Current Effective value per channel ≥ 60 mA
Modulation Frequency 0 – 150 Hz
Modulation 0%, 25%, 50%, 75%, 100%
Dynamic Rhythm 15 s
Beat Frequency Cycle 1 / F
Timing Setting Range Continuously adjustable from 1 min to 99 min, step 1 min
Protocol ≥ 9 fixed protocols
Electrodes Self-adhesive electrodes
Safety Protection Equipped with output channel open-circuit and short-circuit protection functions
