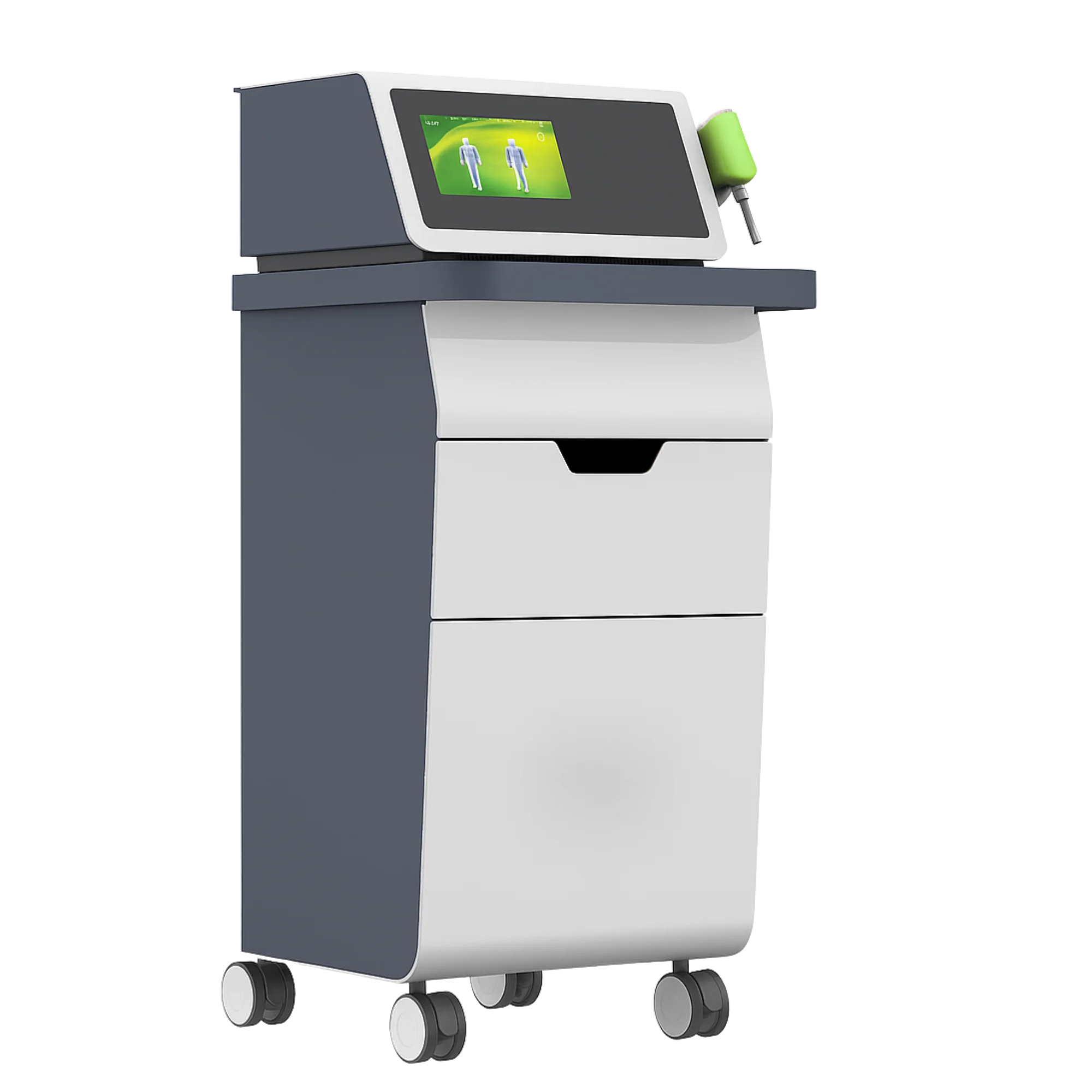

Extracorporeal Shock Wave Therapy (ESWT) Device AV-K-MEDICAL

Description

Description:

The AV-K-MEDICAL device is an advanced therapeutic tool designed for the non-invasive treatment of musculoskeletal disorders and soft tissue injuries. Using high-energy shock waves, the device stimulates healing processes, reduces pain, and enhances tissue regeneration. The device offers a comprehensive treatment solution, with a user-friendly 10-inch touchscreen interface and multiple applicators designed for specific treatment needs.

Specification

• Touchscreen: 10-inch touchscreen display
• Frequency Range: 1 Hz – 22 Hz
• Impact Times: 100 – 9900 pulses (100 steps)
• Impact Pressure: 1 – 5 Bar

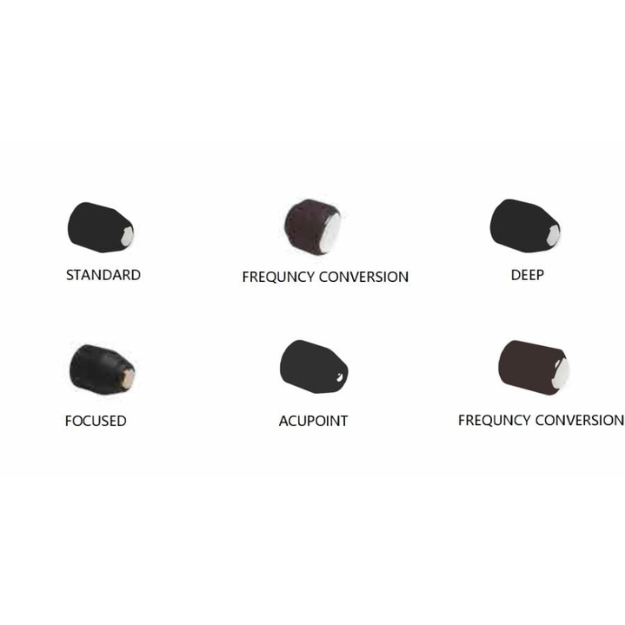

• Applicator types: Standard, Frequency Conversion, Deep, Focused, Acupoint, Frequency Modulation
• Preset Prescriptions: 200 preset protocols
• Customization: Unlimited customized prescription options.
• Anatomy Display: Built-in human anatomy for easy location of treatment points
• Voltage: Typically operates on standard voltage (110V/220V)
• Dimensions: Compact design (exact dimensions depend on the model).
• Weight: Light and portable (specific weight may vary)
• Therapy Type: Extracorporeal Shock Wave Therapy (ESWT)
• Treatment Duration: Typically 5-15 minutes per session
• Treatment Frequency: 2-3 sessions per week, with a typical course of 4-6 sessions for chronic conditions

Advantages:

• Non-Invasive Therapy
  Shockwave therapy is a non-surgical treatment, meaning it avoids the risks and recovery times associated with invasive procedures.
• Multiple Applicators:
  The device comes with six different applicators, including frequency conversion and focused options, allowing for both superficial and deep tissue treatment.
• User-Friendly Interface:
  The 10″ touchscreen provides easy navigation, ensuring that healthcare providers can quickly adjust parameters like frequency, intensity, and pulse count.
• Variable Frequency and Pressure:
  The device’s adjustable frequency (1–22Hz)and impact pressure (1–5 bar) enable a wide range of treatment intensities for different clinical conditions, making it suitable for both acute and chronic issues.
• Built-In Human Anatomy:
  This visual guide helps clinicians locate treatment points accurately, improving the precision of the therapy.
• Fast Treatment:
  Shockwave therapy generally requires fewer sessions compared to other modalities like physical therapy, leading to faster recovery times for patients.
• Safe and Effective:
  ESWT is well-documented in clinical research for treating musculoskeletal pain, with minimal risk and side effects.

Applications:

1. Chronic Tendon Disorders:
   Plantar Fasciitis
   Tennis Elbow (Lateral Epicondylitis)
   Achilles Tendonitis
   Patellar Tendonitis (Jumper’s Knee)

2. Soft Tissue Injuries:
   Myofascial Pain Syndrome
   Trigger Points

3. Bone and Joint Disorders:
   Stress Fractures
   Non-union or delayed union fractures
   Osteoarthritis (especially for knee, hip, and shoulder joints)

4. Post-Surgical Rehabilitation:
   After surgeries like tendon repairs or fractures, ESWT can help speed up recovery by improving circulation and tissue regeneration.

5. Muscle and Ligament Pain:
   It can be used to treat pain from muscle spasms or ligament injuries.

6. Sports Injuries:
   Used for the quick recovery of athletes who have muscle, ligament, or tendon injuries.

7. Aesthetic and Cosmetic Uses:
   Some clinics may use ESWT for improving cellulite appearance or enhancing skin tightening (though this is less common).
