-70%

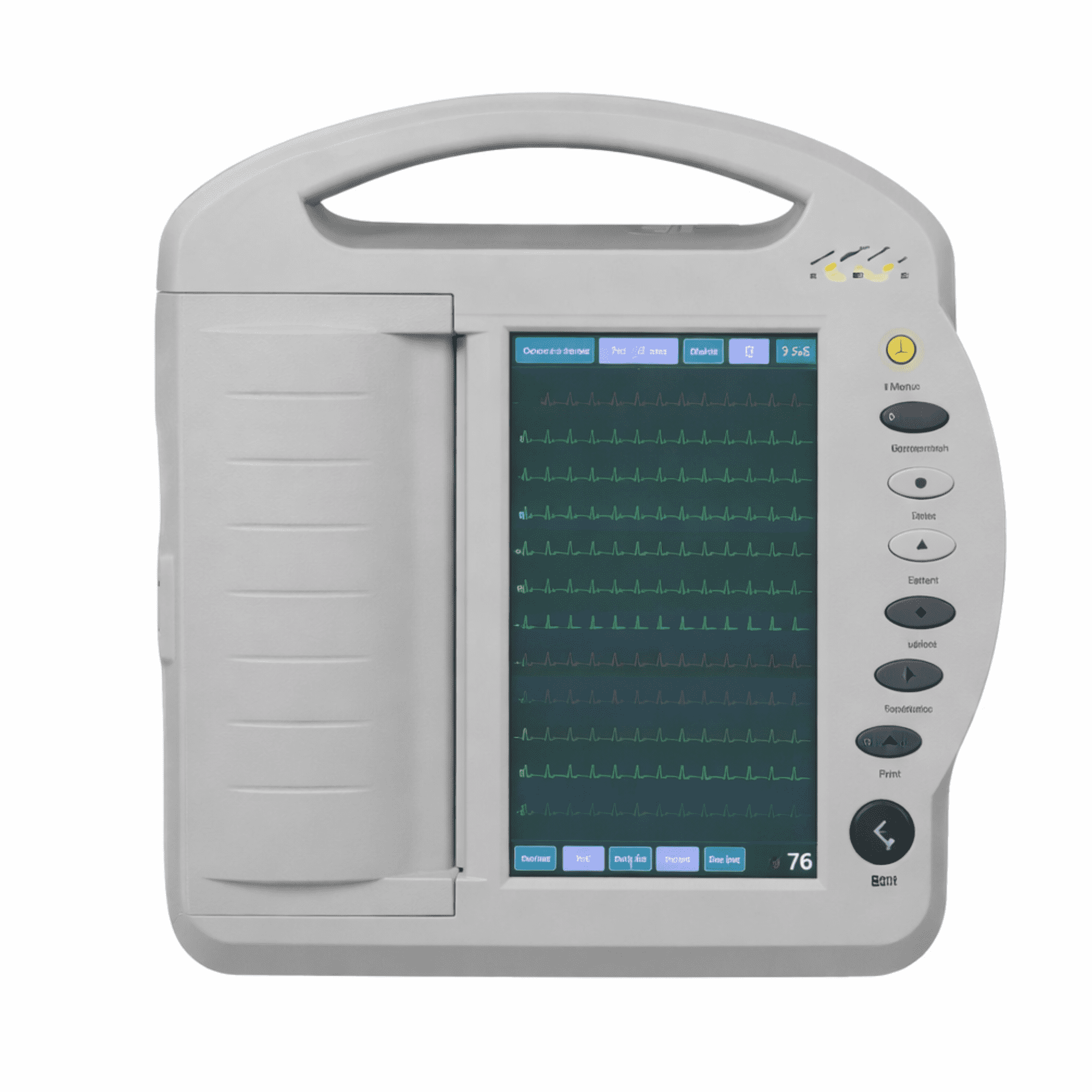

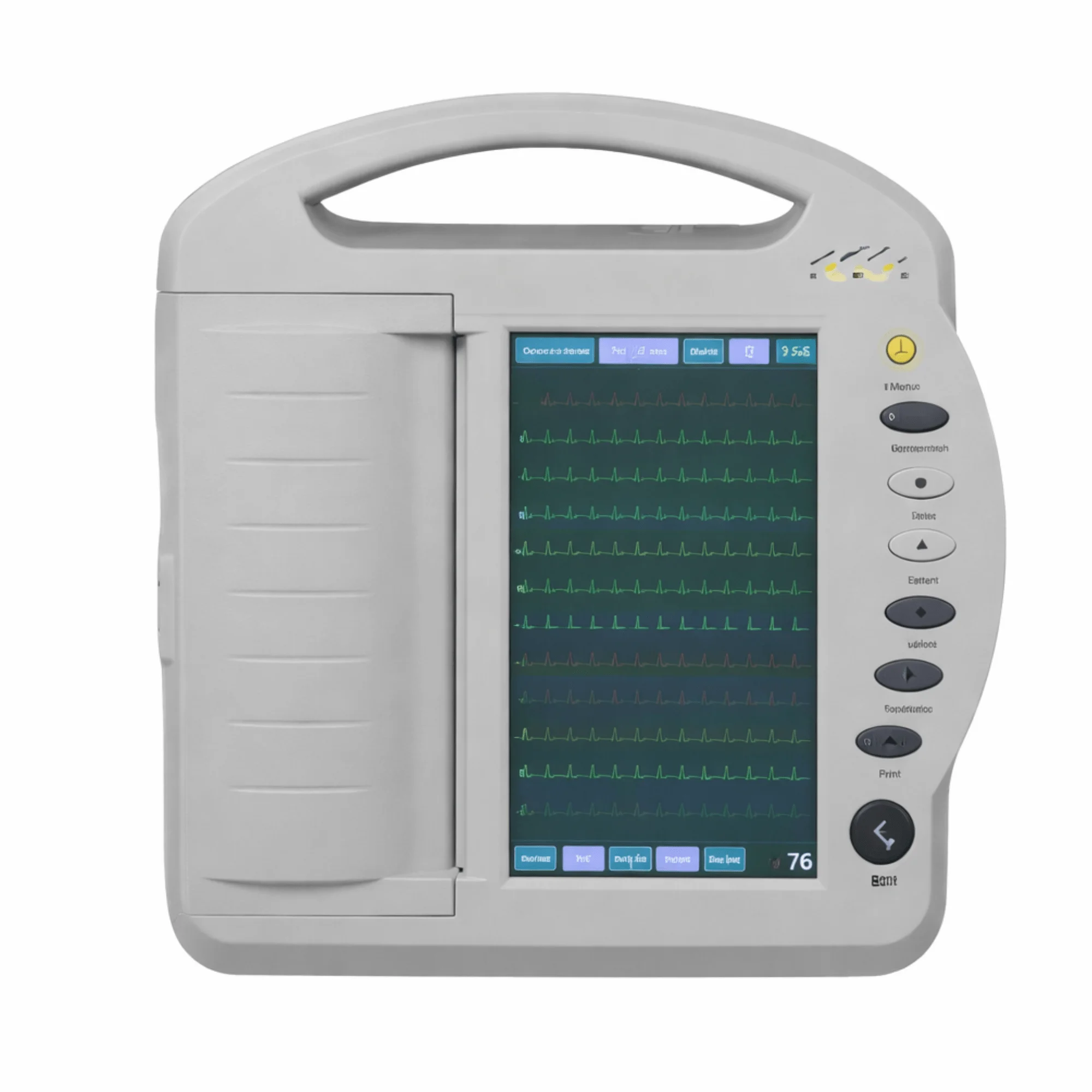

12 CHANNEL ECG MK-1212AV
Original price was: 11,066.
3,320Current price is: 3,320.
FEATURES & SPECIFICATIONS
| Feature | Specification / Details |
| LCD Display | Backlit high-resolution 1024 × 600 |
| Screen Size | 10-inch touchscreen display |
| ECG Display | Displays 12-channel ECG waveform simultaneously |
| Display Information | Time, heart rate, ECG |
Description
Model
MK-1212AV
FEATURES & SPECIFICATIONS
| Feature | Specification / Details |
| LCD Display | Backlit high-resolution 1024 × 600 |
| Screen Size | 10-inch touchscreen display |
| ECG Display | Displays 12-channel ECG waveform simultaneously |
| Display Information | Time, heart rate, ECG |
| Patient Information Input | Patient name, age, sex, hospital name |
| Safety Standard | IEC, Class I, Type CF |
| Leads | 12 standard or Cabrera leads |
| Input Circuit | Floating, defibrillation protection |
| Patient Current Leakage | < 10 µA |
| Input Circuit Current | < 0.1 µA |
| CMRR | > 100 dB |
| Noise Level | ≤ 15 µVp-p |
| Calibration Voltage | 1 mV ±2% |
| Print Channels | 12 channels, rhythm lead selectable |
| Printing Output | 3+3, 6, 6+1, 12, 12+1 channels |
| Operation Modes | Automatic, Manual |
| Recording Mode | Single channel 60s compressed record |
| Rhythm Analysis | R-R histogram and trend chart |
| Thermal Paper | 216 mm / 20 m thermal paper rolls |
| Printing Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s ±3% |
| Printing System | Thermal printer |
| Print Resolution | ≥ 80 dots/mm (Vertical), ≥ 40 dots/mm (Horizontal) |
APPLICATIONS OF MK-1212A ECG MACHINE
- Hospitals & Clinics: Routine cardiac monitoring and diagnosis
- Cardiology Centers: Detailed arrhythmia and heart disease analysis
- Emergency & ICU: Quick 12-lead assessment in critical care
- Outpatient & Mobile Clinics: Portable ECG for field or home visits
- Pre-surgical & Post-surgical Monitoring: Continuous cardiac evaluation
- Research & Medical Training: Teaching tool for ECG interpretation and studies
KEY FEATURES
- 12 leads simultaneous acquisition and display
- 10-inch touchscreen LCD (1024 × 600 pixels)
- Patient info input via touchscreen keyboard
- 12-channel printout on 216 mm thermal paper
- Manual / Auto mode / Arrhythmia analysis
- Auto interpretation results
- Built-in rechargeable Li-poly battery
- 2 hours continuous printing
- Built-in memory for 200 reports
- Image freeze for review and hardcopy
- Digital filters to eliminate muscle tremors and baseline wandering
- Built-in RS232 / USB interface
WHY CHOOSE MK-1212A
- 12-lead simultaneous ECG
- 10” touchscreen (1024 × 600)
- Multiple print formats (216 mm thermal)
- Auto & manual modes
- Stores 200 reports
- IEC Class I safety, low leakage
- Digital filters for clean signals
- Portable, 2-hour battery life
- RS232 / USB connectivity
Be the first to review “12 CHANNEL ECG MK-1212AV”
Related products
-
- -70%
- Biomedical Equipment, Emergency Equipment
Electrocardiograph 12 channel
-
Original price was: 11,666.3,500Current price is: 3,500.
- Add to cart
-
- -70%
- Biomedical Equipment
Overbed Table
-
Original price was: 966.290Current price is: 290.
- Add to cart
-
- -70%
- Biomedical Equipment, Emergency Equipment

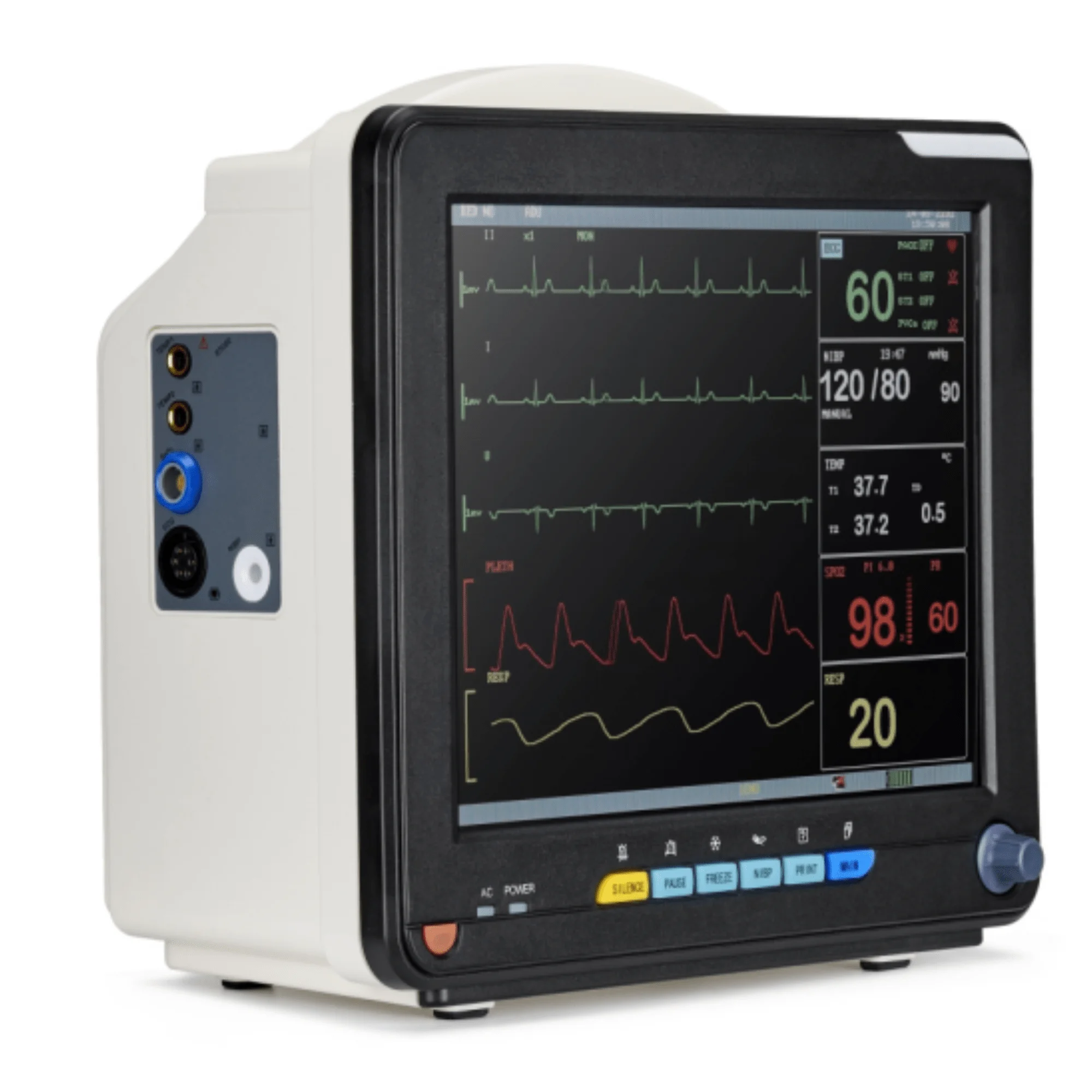

6-Parameter Patient Monitor (With Built-in Printer) AV-FS-02
-
